The making of bhola - your cert expiration overseer - Part 1

08 Oct 2020 #ruby #rubyonrails The making of bhola - your cert expiration overseer - Part 1

You might have already seen me writing a bit about bhola already on twitter, I wrote a little bit about why I have been building bhola. This post is more of a continuation to this tweet and what I envision it to be moving forward.

What was the inspiration

Do you sometimes wake up, with a call by someone from your team, telling you some SSL cert has expired? Do you keep track of SSL cert expirations on your to do notes or excel sheets? Would you like to be on top of such x509 cert renewals?

All of this are directly due to

Then bhola is for you!

What does bhola do?

v0.1 of Bhola, gives you a dead simple API, which you can use to ask Bhola, to track domains which have certs attached to it. It automatically checks for the cert expiration in the background keeping note of when is it expiring.

The operator can set a buffer period, which would bhola, then use to see if it meets the threshold number of days, before the cert is going to expire, before marking the cert, that it needs renewal asap.

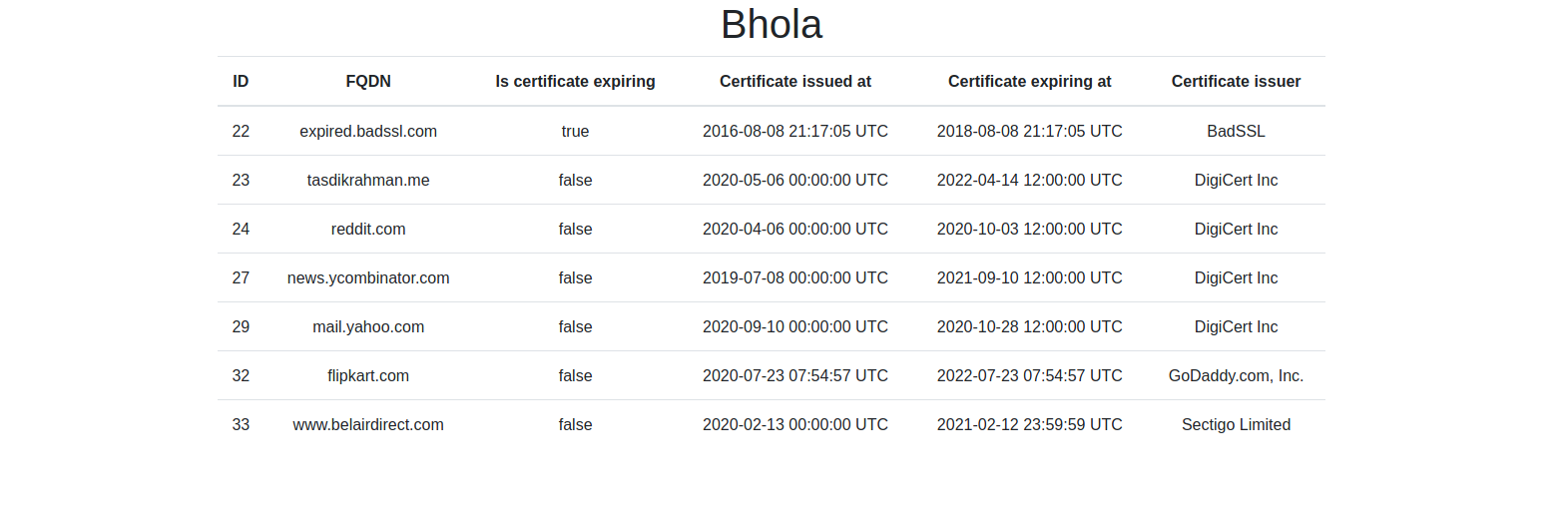

Want to check, what domains, is it already tracking? Bhola comes with a very simple bare minimum UI, which one can use to check, what domains are being tracked, when are they expiring and other metadata details, like who issuer of the domain, when is it expiring, when was it issued.

What is required by Bhola to run? It just needs a good old postgres to function to keep track of the domains, and that’s it. Nothing shiny. Plain and simple.

Further on v0.2 of bhola adds support for sending notifications to slack as part of evolving, from just being a dashboard to something which can be used to preemptively alert the operator on is the certificate expiring.

Further more, smaller improvements like 1 step dev setup, docker-compose setup and container images available for docker would make reproducing the setup for bhola easier than before, than the status in milestone 0.1.

Not that it matters much, but rails has been a fun framework to work on, especially with rspec, practicing BDD and TDD has been a great experience.

How does one even insert a domain to be tracked as of now?

Example request
$ curl --location --request POST 'localhost:3000/api/v1/domains' \
  --header 'Content-Type: application/json' \
  --data-raw '{
      "fqdn": "https://expired.badssl.com"
  }'
Example response
{
    "data": {
        "fqdn": "expired.badssl.com",
        "certificate_expiring": true,
        "certificate_issued_at": "2016-08-08T21:17:05.000Z",
        "certificate_expiring_at": "2018-08-08T21:17:05.000Z",
        "certificate_issuer": "/C=US/ST=California/L=San Francisco/O=BadSSL/CN=BadSSL Intermediate Certificate Authority"
    },
    "errors": []
}

querying the domains stored

Example request
$ curl --location --request GET 'localhost:3000/api/v1/domains' \
  --header 'Accept: application/json'
Example response
{
    "data": [
        {
            "fqdn": "www.tasdikrahman.com",
            "certificate_expiring": false,
            "certificate_issued_at": "2020-05-06T00:00:00.000Z",
            "certificate_expiring_at": "2022-04-14T12:00:00.000Z",
            "certificate_issuer": "/C=US/O=DigiCert Inc/OU=www.digicert.com/CN=DigiCert SHA2 High Assurance Server CA"
        },
        {
            "fqdn": "expired.badssl.com",
            "certificate_expiring": true,
            "certificate_issued_at": "2016-08-08T21:17:05.000Z",
            "certificate_expiring_at": "2018-08-08T21:17:05.000Z",
            "certificate_issuer": "/C=US/ST=California/L=San Francisco/O=BadSSL/CN=BadSSL Intermediate Certificate Authority"
        }
    ],
    "errors": []
}

Are there other ways to do such domain expiration checks?

Yes, there are are other ways to do this.

If you are on cert-manager, then you can make use of https://grafana.com/grafana/dashboards/11001, adding alerts on top of the dashboard should not be very complicated.

There is an exporter https://github.com/ribbybibby/ssl_exporter, which will do the scraping for you and expose the expiration date of the cert as the metric ssl_cert_not_after, which then you can add an alert on top.

scrape_configs:
  - job_name: "ssl"
    metrics_path: /probe
    static_configs:
      - targets:
          - example.com:443
          - prometheus.io:443

Where example.com and prometheus.io would be your scrape endpoints, in this example.

Thanks to Joy, for pointing the above out to me.

Then there is a guide, on how to do with prometheus, via the the blackbox exporter

And the good old openssl command will always be there

$ echo | openssl s_client -servername www.tasdikrahman.com -connect www.tasdikrahman.com:443 2>/dev/null | openssl x509 -noout -dates
notBefore=Aug 19 13:59:14 2020 GMT
notAfter=Nov 17 13:59:14 2020 GMT

How does me running bhola help then?

The above tools will work, no doubt about it, if you already are on these systems, you can definitely leverage them to make use of them in ways similarly shown above. But even then, redundancy is never a bad thing to have.

Adding to it, one plus which bhola has is the validations before tracking endpoints, not tracking invalid/not having certs attached to endpoints. Which helps in keeping the entries sane.

If you are using letsencrypt, given that the certificates would be expiring within 3 months and that they also send email notifications, you would have used some automation to renew your certificates, due to the 3months expiration policy of LE certs. Having bhola as your external system to monitor your domains, would be an extra guard against the automation failing silently or the emails getting missed.

Furthermore, bhola panders more to the userbase, who are just in search of something, running which they can just start tracking and getting alerts for their domains, rather than tinkering with tools which they may be unfamiliar with, hence further reducing their friction in prioritizing their efforts to add alerting on domain expirations, rather than first trying to run prometheus(if they aren’t already) or for those who don’t yet have the right level of automation maturity for their certificate renewals. If you/your org are already on a level where you have already done and dusted this alerting and cert renewal part via one of the ways described above or via some other way, then if I may say, you would come under a minority and not the norm.

Albeit there is an overhead with bhola which will be running a rails service and a postgres db. The decision then would with the operators, on what kind of solution would they be comfortable maintaining. People should always have multiple options for such tools to pick with, depending on their comfort level and the level of overhead they would want in their system.

Assumptions made by bhola

What bhola will not be

What’s next?

I envision bhola to be a 1 stop service for your needs of tracking your domain expirations for starters and there are quite a few thing which I want to see in it, in future. Some of them being

While I have not spread the above in specific milestones, but I would mostly pick up the first one for milestone 0.3.

As bhola is completely open source, would love to hear what you feel can be added to make bhola better than before.
